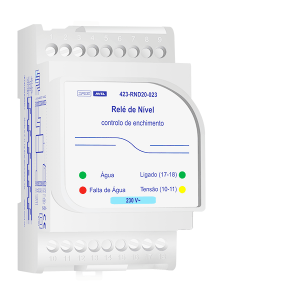

423RND20 - Filling control.

Control of water pumps used for filling tanks or minimum level alarms.

  • Modular Box (3 modules) for application on DIN rail.
  • Water existence in the tank, indicated by a bicolor LED:
    • Green LED  water above the maximum level.
    • Orange LED water between the maximum and minimum levels.
  • Low water level in the deposit, indicated by a red LED.
  • Output relay ON (17-18), indicated by a green LED.
  • Power supply ON (10-11), indicated by a yellow LED.
  • Supply voltage indicated on the front of the relay

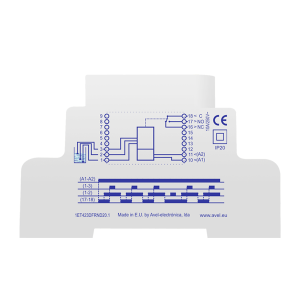

  • Wiring scheme indicated on the side of the relay.
  • Switching diagram indicated on the side of the relay

Technical characteristics

  • Sensibilidade dos circuitos de deteção: 0 a 80 Kohm
  • Tensão nos circuitos de deteção: 12 VAC
  • Tensões de alimentação: AC: 24V; 230V (Outras tensões sob consulta)
  • Tolerância na tensão de alimentação: -15%…+10%
  • Consumo: < 3VA
  • Dimensões: (L) 54mm x (A) 90mm x (P) 68mm
  • Relé de saída:
    • Poder de corte: 2500VA (10A/250V)
    • Tensão máxima de corte: 400VAC

Order codes

423RND20002

24VAC

423RND20023

230VAC
