P2320 - Swimming pool control box.

Swimming pool control box for command and protection of electric pumps used in swimming pool water circulation systems.

  • Plastic box 250x200x110 mm in grey ABS RAL7035 and transparent lid in polocarbonate with window.
  • Contactor and motor protector of the selected trademark.
  • Programable timer switch with power backup for the automatic motor control.
  • Automatic, manual or OFF, controlled by a 3 position switch with protective capsule.
  • Protection against short-circuits and over-charges through motor protector.
  • Indication of motor ON (green signal lamp).
  • Indication of motor protector OFF (red signal lamp).
  • Indication of control box in automatic functioning (yellow signal lamp).
  • 4 Cable glands, for connection cables.

Applications

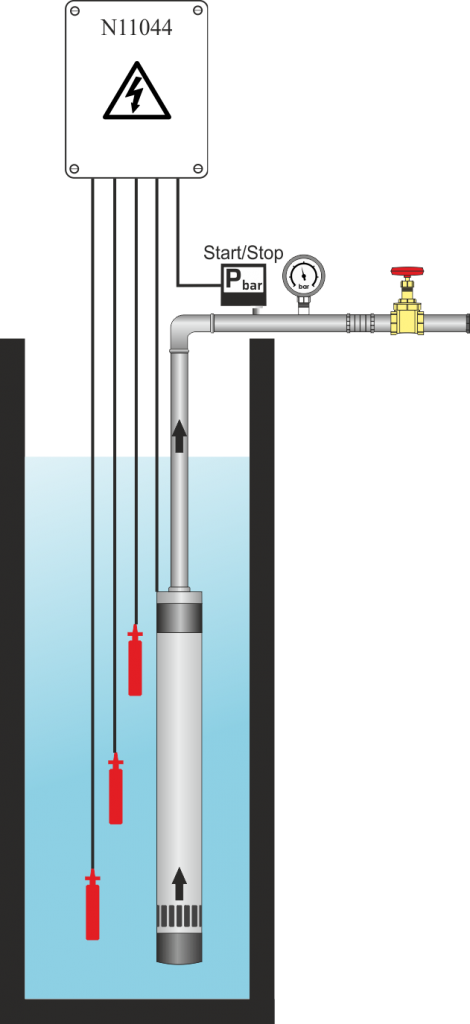

Controlo de nível para furo

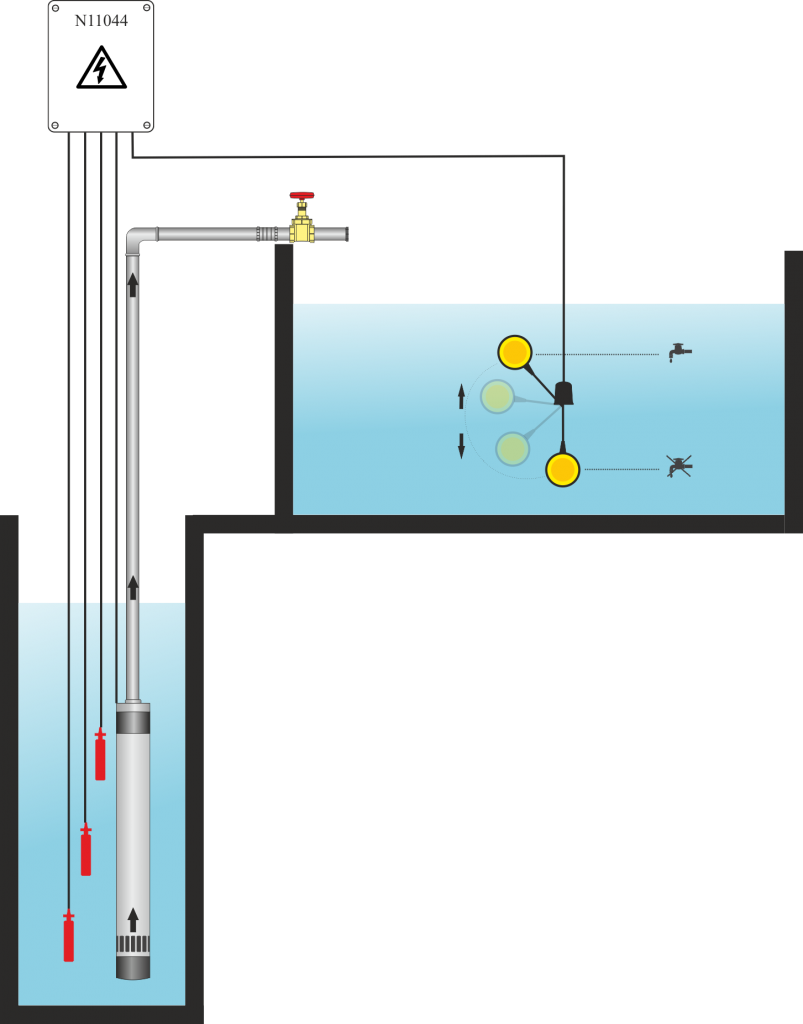

Controlo de nível para furo + Depósito

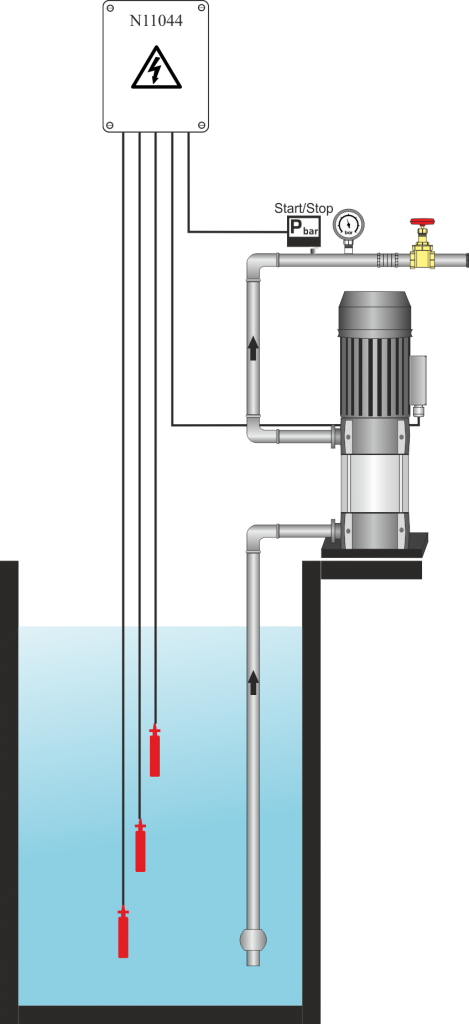

Controlo de nível para poço

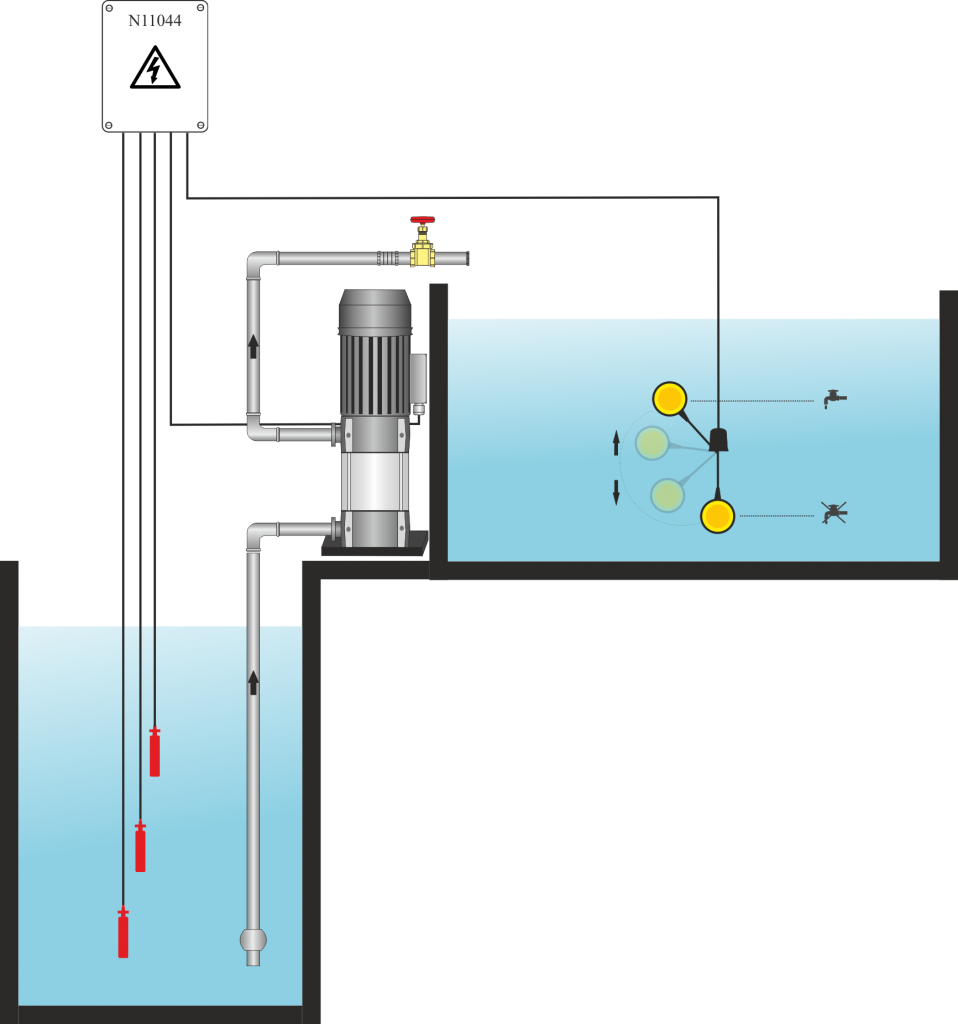

Controlo de nível para poço + Depósito

Order codes

5QP2320MT.02
1,6 ~ 2,5 A
5QP2320MT.04
2,5 ~ 4,0 A
5QP2320MT.06
4,0 ~ 6,3 A
5QP2320MT.10
6,0 ~ 10 A
5QP2320TT.02
1,6 ~ 2,5 A
5QP2320TT.04
2,5 ~ 4,0 A
5QP2320TT.06
4,0 ~ 6,3 A
5QP2320TT.10
6,0 ~ 10 A
5QP2320MW.02
1,6 ~ 2,5 A
5QP2320MW.04
2,5 ~ 4,0 A
5QP2320MW.06
4,0 ~ 6,3 A
5QP2320MW.10
6,0 ~ 10 A
5QP2320TW.02
1,6 ~ 2,5 A
5QP2320TW.04
2,5 ~ 4,0 A
5QP2320TW.06
4,0 ~ 6,3 A
5QP2320TW.10
6,0 ~ 10 A
