N1336 - Level control box with phase sequence/failure relay.
Control and protection of water pumps used in filling of deposits, through water extraction in wells, artesian holes or other reservoirs.
- Plastic box 300x250x140 mm in grey ABS RAL7035 with hinge.
- Contactor and overload relay of the selected brand.
- Level relay for protection in case of lack of water.
- Protection against phase change/failure by a phase sequence/failure relay.
- Operation mode controled by two button switches (I)(ON) and (0)(OFF).
- Remote control start / stop connection.

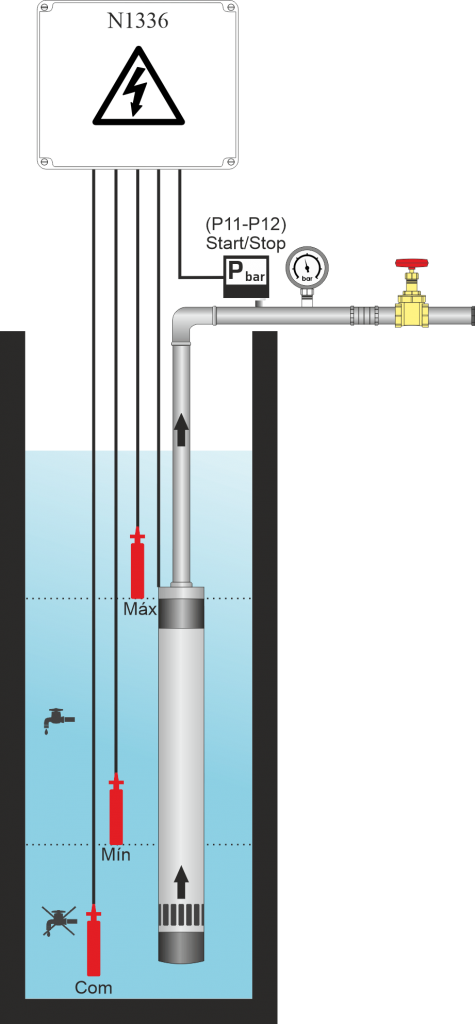

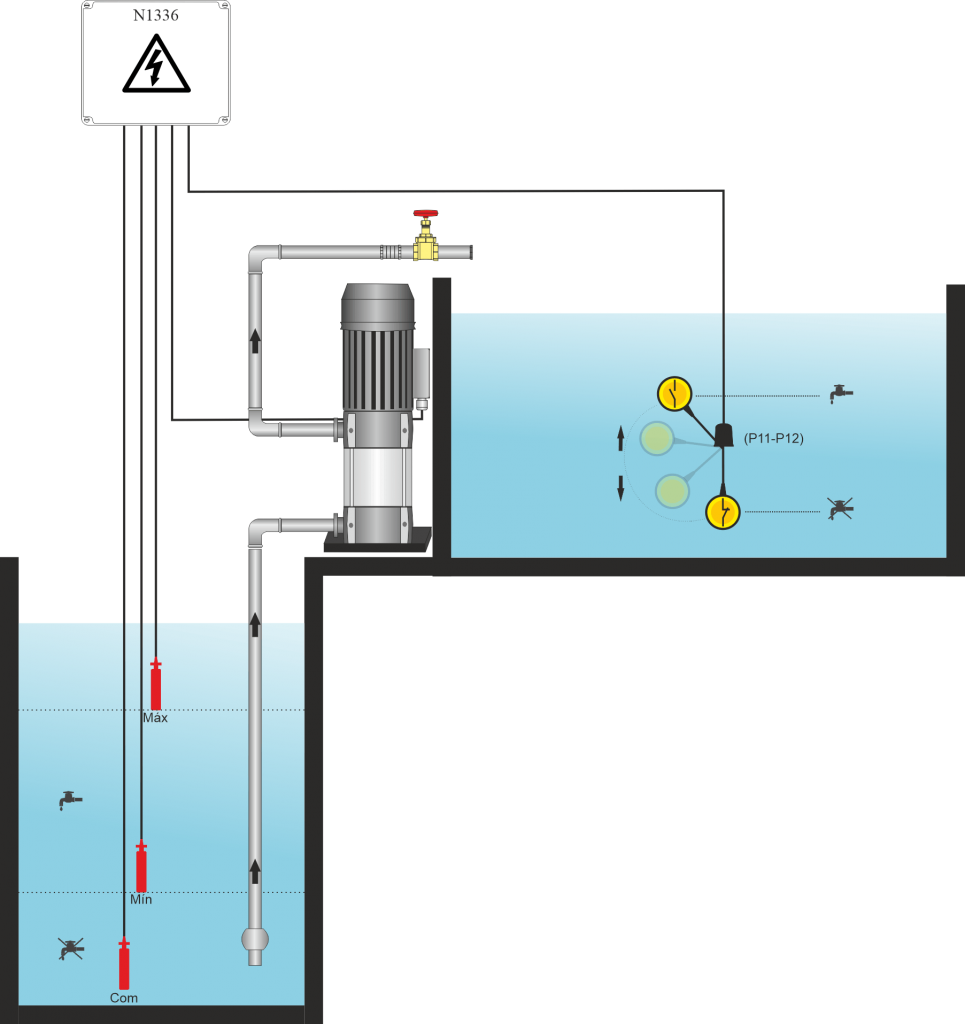

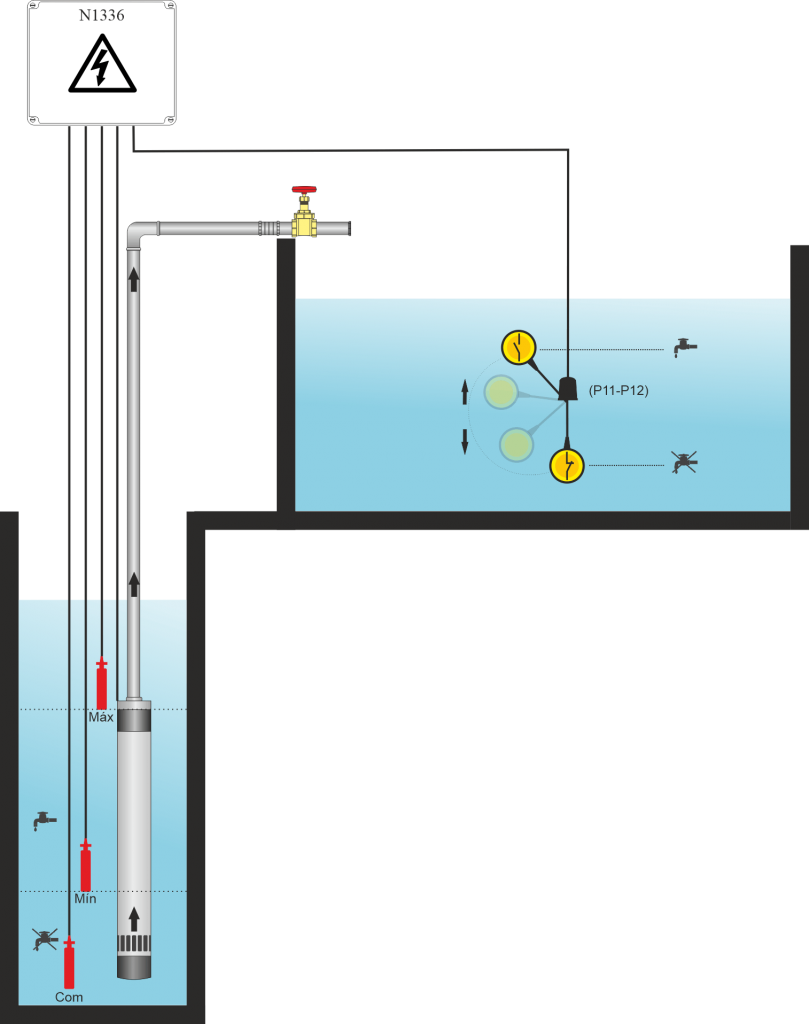

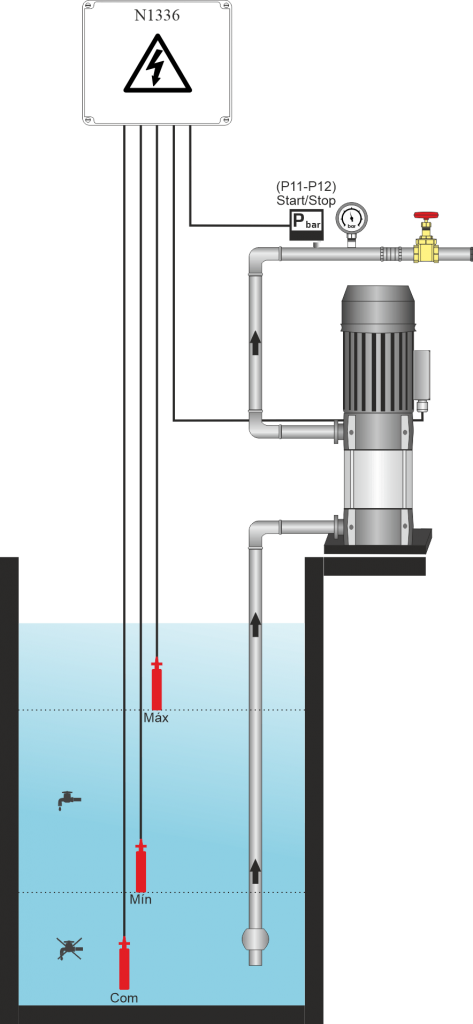

Applications
Order codes
5QN1336TS.02
1,6 ~ 2,5 A
1,6 ~ 2,5 A
5QN1336TS.04
2,5 ~ 4,0 A
2,5 ~ 4,0 A
5QN1336TS.06
4,0 ~ 6,0 A
4,0 ~ 6,0 A
5QN1336TS.08
5,5 ~ 8,0 A
5QN1336TS.10
7,0 ~ 10 A
7,0 ~ 10 A
5QN1336TS.13
9,0 ~ 13 A
