423RNPD0 - Emptying and filling control.

Control of electric pumps used in the filling of deposits through the capture of water in wells, artesian holes or other tanks.

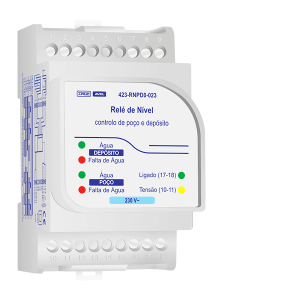

  • Modular Box (3 modules) for DIN rail application.
  • Water existence in the tank, indicated by a green LED.
  • Lack of water in the tank, indicated by a red LED.
  • Water existence in the well, indicated by a green LED.
  • Lack of water in the well, indicated by a red LED.
  • Output relay on (17-18), indicated by a yellow LED.
  • Power supply on (10-11), indicated by a yellow LED.
  • Supply voltage indicated on the front of the relay.

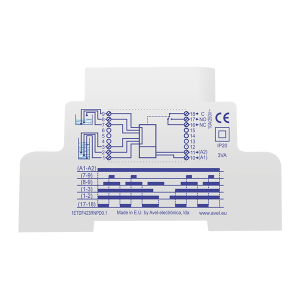

  • Wiring scheme indicated on the side of the relay.
  • Switching diagram indicated on the side of the relay.

Technical characteristics

  • Detection circuits sensitivity range: 0 a 80 Kohm
  • Detection circuits voltage: 12 VAC
  • Supply voltages: AC: 24V; 230V (other voltages on request)
  • Supply tolerance: -15%…+10%
  • Power consumption: < 3VA
  • Dimensions: (W) 54mm x (H) 90mm x (P) 68mm
  • Output relay:
    • Max. power rating: 2500VA (10A/250V)
    • Tensão máxima de corte: 400VAC

Order codes

423RNPD0002

24VAC

423RNPD0023

230VAC
