411-RVSF1

Protection in the changing or failure/asymmetry of phases.

  • Plastic box with an 11 pin circular plug.
  • Knob for adjustment of the maximum voltage drop acceptable in one of the phase.
  • Output relay on (1-3), indicated by a green LED.

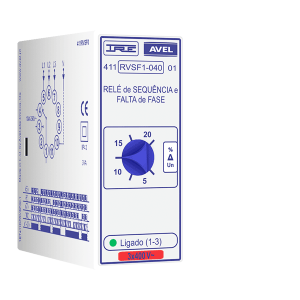

  • Supply voltage indicated on the front of the relay.

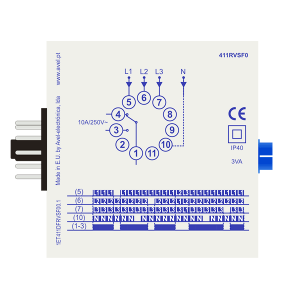

  • Wiring scheme indicated on the side of the relay.
  • Switching diagram indicated on the side of the relay.

Technical characteristics

  • Maximum acceptable voltage drop: 0 to 20% Un (adjustable)
  • Delay on operation/releasing: 2s (approx.).
  • Power supply voltage: 3 x 400VAC (extracted directly from the phases to control).
  • Power consumption: < 3VA.
  • Dimensions: (W) 35mm x (H) 79mm x (P) 77mm.
  • Output relay:
    • Max. power rating: 2500VA (10A/250V).
    • Max. switching voltage: 400VAC.

Order codes

411RVSF1040

400VAC
