411-RV12T

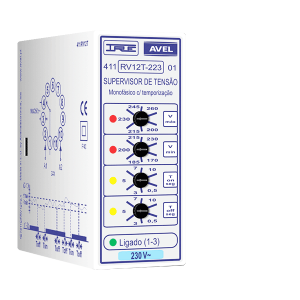

Single phase voltage supervisor, with timer.

  • Plastic box with an 11 pin circular plug.
  • Knob for adjustment of the maximum voltage admissible (Vmax).
  • Overvoltage, indicated by a red LED.
  • Knob for adjustment of the minimum voltage admissible (Vmin).
  • Undervoltage, indicated by a red LED.
  • Knob for adjustment of the delay time to operation (Ton).
  • Ton counting, indicated by a yellow LED.
  • Knob for adjustment of the delay time to release (Toff).
  • Toff counting, indicated by a yellow LED.
  • Output relay on (1-3), indicated by a green LED.
  • Supply voltage indicated on the front of the relay.

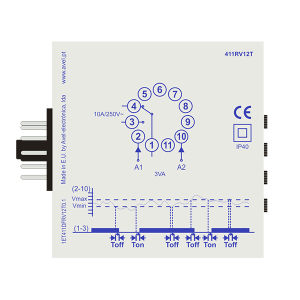

  • Wiring scheme indicated on the side of the relay.
  • Switching diagram indicated on the side of the relay.

Technical characteristics


  • Power supply voltage: AC: 230V.
  • Delay on operation T(on): 0,5 a 10s (adjustable) .
  • Delay on releasing T(off): 0,5 a 10s (adjustable).
  • Power consumption: < 3VA.
  • Dimensions: (W) 35mm x (H) 79mm x (P) 77mm.
  • Output relay:
    • Max. power rating: 2500VA (10A/250V).
    • Max. switching voltage: 400VAC.

Order codes

411RV12T223

230VAC
