411-RTMFM
Multifunction timer (RTAOM+RTOSM+RTITM) - Multiscale

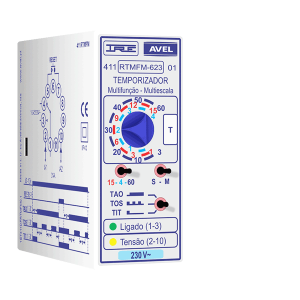

- Plastic box with an 11 pin circular plug.
- Knob for time adjustment (T).
- Switch for scale selection: 0,2…4; 0,5…15 or 2…60.
- Switch for scale selection: Sec or Min; Min or Hou.
- Output relay on (1-3), indicated by a green LED.
- Power supply on (2-10), indicated by a yellow LED.
- Supply voltage indicated on the front of the relay.

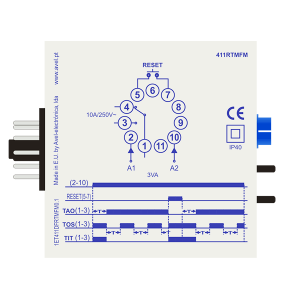

- Wiring scheme indicated on the side of the relay.
- Switching diagram indicated on the side of the relay.
Características técnicas
- Time scales (T):
- 0,2s to 60 min (spread over 6 scales)
- 0,2min to 60 h (spread over 6 scales)
- Repeatability: +/- 1%
- Supply voltages: AC/DC: 24V (protected polarity) | AC: 230V; 400V (other voltages on request)
- Supply tolerance: -15%…+10%
- Power consumption: < 3VA
- Dimensions: (W) 35mm x (H) 79mm x (P) 77mm
- Output relay:
- Max. power rating: 2500VA (10A/250V)
- Max. switching voltage: 400VAC
Códigos de encomenda
411RTMFM601
0,2s...60min / 12VAC/DC
411RTMFM602
0,2...60min / 24VAC/DC
411RTMFM623
0,2...60min/230VAC
411RTMFM640
0,2...60min/400VAC
411RTMFM902
0,2min...60h / 24VAC/DC
411RTMFM923
0,2min...60h / 230VAC
411RTMFM940
0,2min...60h / 400VAC
