411-RTAOD

Operation and release delay - Multiscale

  • Plastic box with an 11 pin circular plug.
  • Knob for Ton time adjustment .
  • Knob for Toff time adjustment .
  • Power supply on (2-10), indicated by a yellow LED.
  • Supply voltage indicated on the front of the relay.

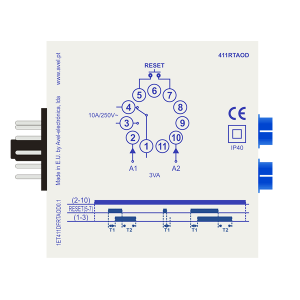

  • Wiring scheme indicated on the side of the relay.
  • Switching diagram indicated on the side of the relay.

Technical characteristics

  • Time scales (T):
    • 2 a 60s
  • Repeatability: +/- 1%
  • Supply voltages: AC/DC: 12V; 24V (protected polarity)  |  AC: 230V; 400V (other voltages on request)
  • Supply tolerance: -15%…+10%
  • Power consumption: < 3VA
  • Dimensions: (W) 35mm x (H) 79mm x (P) 77mm
  • Output relay:
    • Max. power rating: 2500VA (10A/250V)
    • Max. switching voltage: 400VAC

Order codes

411RTAOD3301

Ton..60s; Toff..60s / 12VAC/DC

411RTAOD3302

Ton..60s; Toff..60s / 24VAC/DC

411RTAOD3323

Ton..60s; Toff..60s / 230VAC

411RTAOD3340

Ton..60s; Toff..60s / 400VAC
