411RA22A - Alternating relay.
Alternating control for hydro-pressure units pumping systems with 2 motors. 2 command levels + alarm.

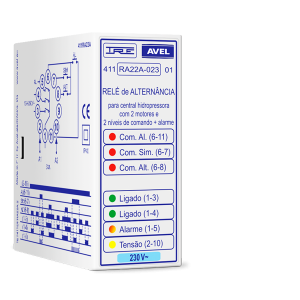

- Plastic box with an 11 pin circular plug.
- Alarm control off (6-11), indicated by a red LED.
- Simultaneity control off (6-7), indicated by a red LED.
- Alternating control off (6-8), indicated by a red LED.
- Output relay on (1-3), indicated by a green LED.
- Output relay on (1-4), indicated by a green LED.
- Running alarm on (1-5), indicated by a red LED.
- Power supply on (2-10), indicated by a yellow LED.
- Supply voltage indicated on the front of the relay.
- Wiring scheme indicated on the side of the relay.
- Switching diagram indicated on the side of the relay.
Technical characteristics
- Control circuits sensitivity range: 0 a 20 Kohm
- Control circuits voltage: 12 VDC
- Supply Voltage: AC/DC: 24V (protected Polarity) | AC: 230V (Other voltages on request)
- Supply Tolerance: -15%…+10%
- Consumption: < 3VA
- Dimensions: (W) 35mm x (H) 79mm x (D) 77mm
- Output Relay:
- Max. power rating: 2500VA (10A/250V)
- Max. switching Voltage: 400VAC
Order codes
411RA22A002
24VAC/DC
411RA22A023
230VAC
