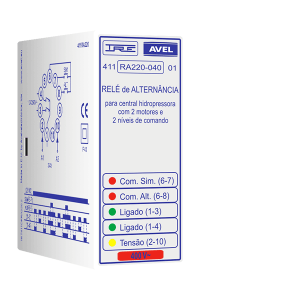

411RA220_Frontal
411RA220_L

411-RA220

Alternating control for hydro-pressure central with 2 motors.

  • Plastic box with an 11 pin circular plug.
  • Simultaneity control off (6-7), indicated by a red LED.
  • Alternating control off (6-8), indicated by a red LED.
  • Output relay on (1-3), indicated by a green LED.
  • Output relay on (1-4), indicated by a green LED.
  • Power supply on (2-10), indicated by a yellow LED.
  • Supply voltage indicated on the front of the relay.

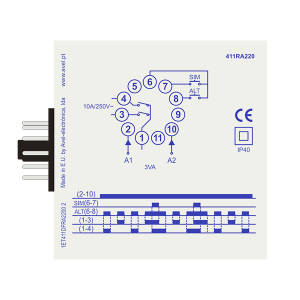

  • Wiring scheme indicated on the side of the relay.
  • Switching diagram indicated on the side of the relay.

Technical characteristics

  • Detection circuits sensitivity range: 0 a 20 Kohm
  • Detection circuits voltage: 12 VAC
  • Supply voltages: AC/DC: 24V (protected polarity)  |  AC: 230V; 400V (other voltages on request)
  • Supply tolerance: -15%…+10%
  • Power consumption: < 3VA
  • Dimensões: (W) 35mm x (H) 79mm x (P) 77mm
  • Output relay:
    • Switching power: 2500VA (10A/250V)
    • Maximum switching voltage: 400VAC

Order codes

411RA220002

24VAC/DC

411RA220023

230VAC

411RA220040

400VAC
